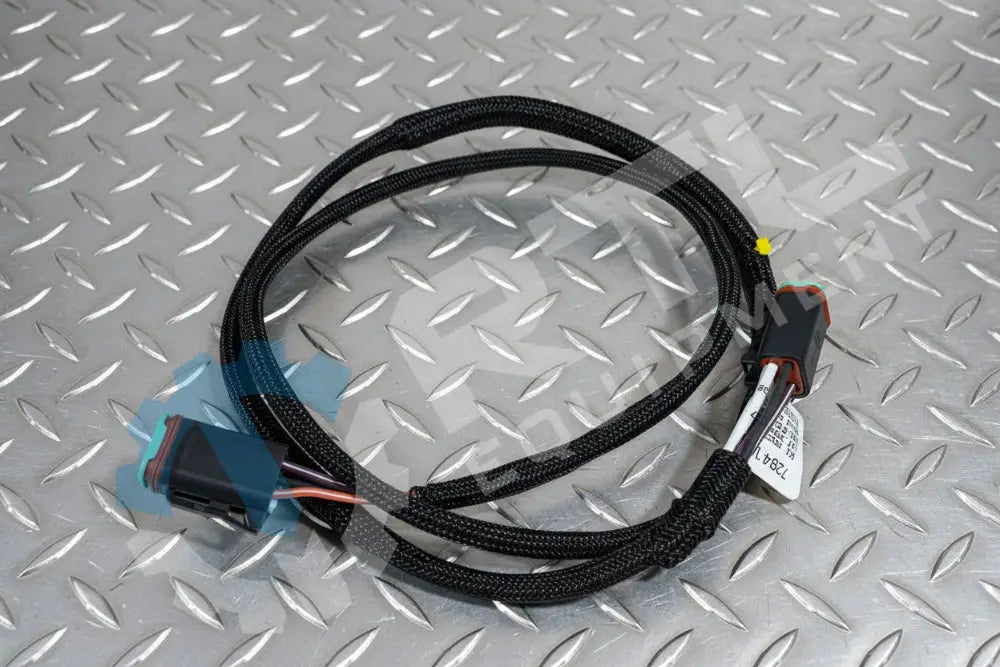

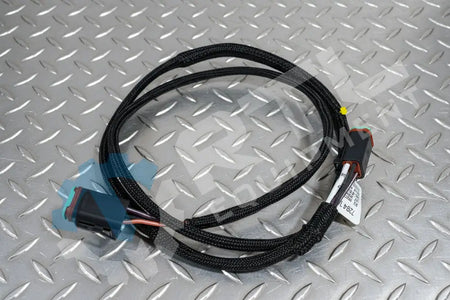

This is the Bobcat Joystick Harness, part number 7284703. A wiring harness is a bundle of wires and connectors that carries electrical signals and power between components on a machine, and a joystick harness is the harness tied to the joystick controls. Ordering by the exact part number matters because harnesses of similar appearance can differ in connectors and wire routing, and the part number is the surest way to get the right one.
| Brand | Bobcat |
|---|---|
| Part number | 7284703 |
| Store SKU | 7569687 |
| Part type | Joystick Harness |
Machine models are not listed on this page. Check the part number against the machine's parts book, or send the model and serial number through the quote form so the parts team can confirm fitment.
Match part number 7284703 to the machine's parts book or to the number on the old part, if one is marked. If you are unsure, send the machine model and serial number through the quote form and the parts team will check it.
Harnesses in general carry electrical signals and power between components through wires and connectors. A joystick harness is the harness associated with the joystick controls, so a fault in it can affect how those controls communicate with the rest of the machine.
Common signs for wiring harnesses include cracked or chafed insulation, exposed or broken wires, corroded or loose connectors, bent or pushed-back pins, and intermittent or lost control response. Follow the machine's service manual when diagnosing electrical faults.
Have the part number (7284703), the machine model and serial number, and the quantity you need.
No. The store SKU (7569687) is an internal listing reference. Always order and cross-check by the part number, 7284703.
