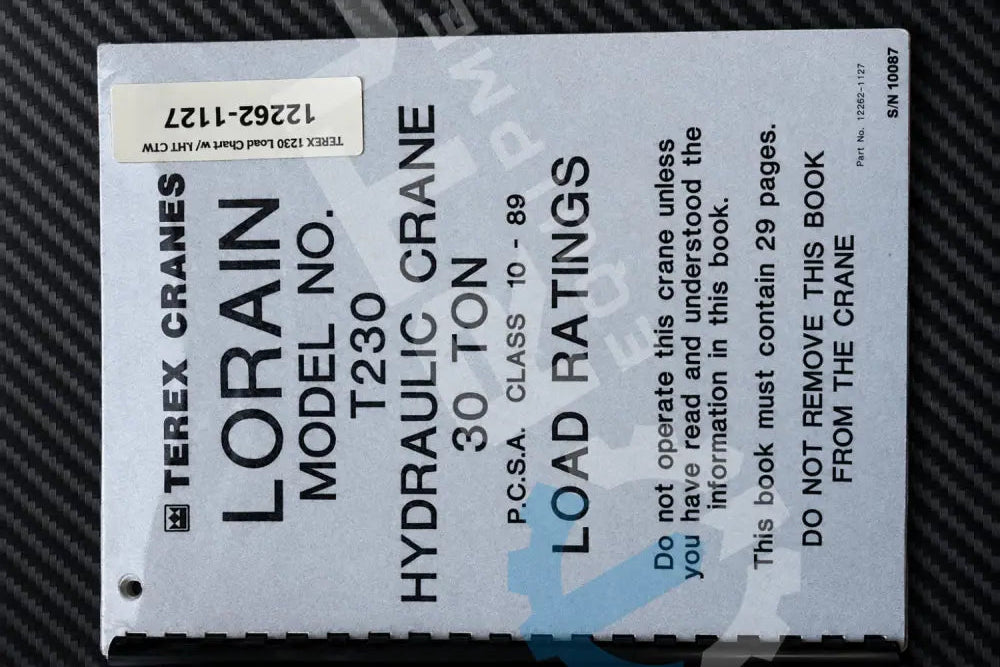

This is the Terex T230 Load Chart with Lht Ctw, part number 12262-1127, listed under the Terex brand. A load chart in general is reference information that tells the operator what a machine is rated to lift in a given configuration. Ordering by the exact part number matters because charts are specific to the machine and configuration they were issued for, and a near match is not a safe substitute.
| Brand | Terex |
|---|---|
| Part number | 12262-1127 |
| Store SKU | 7109059 |
| Part type | Load Chart with Lht Ctw (listed in the Cab and Body category) |
Specific machine models and serial ranges are not listed on this page. Check part number 12262-1127 against the machine's parts book, or send the model and serial number through the quote form so the parts team can confirm.
Match the part number 12262-1127 to your parts book or to the number on the existing part. If you cannot find it, send the machine model and serial number through the quote form and the parts team will check it for you.
A load chart in general gives the operator rated capacity information for the machine so lifts can be planned within its limits. Because that information depends on the machine and its configuration, the correct chart for the exact machine matters.
Common signs include a chart that is missing, damaged, or no longer clearly readable. If you are unsure whether the chart on the machine is the correct one, confirm the part number against the parts book and follow the machine's service manual.
Have the part number (12262-1127), the machine model and serial number, and the quantity you need. If you are replacing an existing chart, the number on the old part helps confirm the match.
No. The store SKU (7109059) is an internal listing number. Order and cross-check by the part number, 12262-1127.
